For full specifications of this product please visit the Inogeni web site clicking HERE

PRODUCT DETAILS

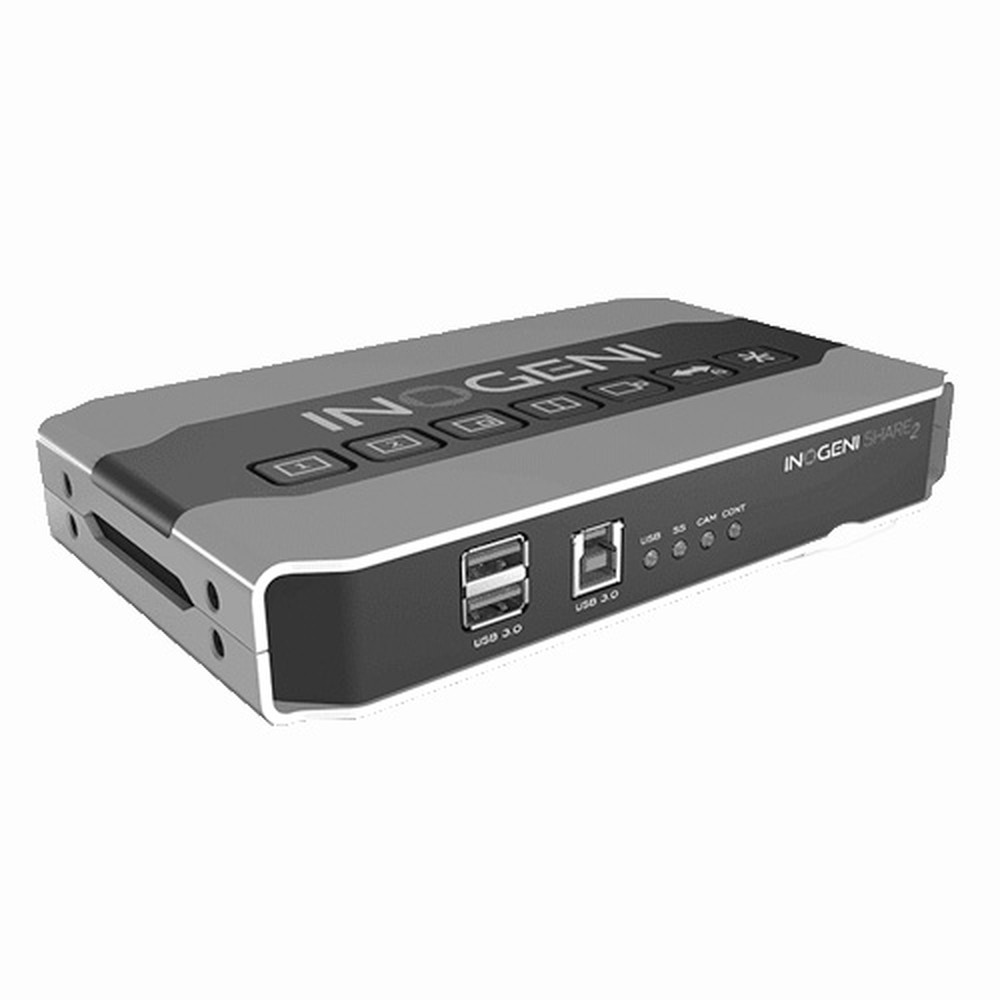

SHARE2 Camera Mixer provides Picture-In-Picture in one video flow.
Create interactive presentations for collaborative meetings and HyFlex classrooms.

2 HDMI cameras mixer into a single USB 3.0 interface
Engage a dynamic presentation and easily switch up to 14 mix setup videos
Change camera and video configuration without cutting the flow of your presentation
Ideal for remote education, collaborative meetings, webinars or live streaming
Compatible with the Q-SYS Core processors
See Q-SYS/INOGENI SHARE2 application notes

Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
Audio I/O and mixer via the  INOGENI Control App

Controllable by LAN & RS-232
Cost-effective solution that is reliable and simple to install and connect (no driver required)
Compact and robust design with its aluminum enclosure

For full specifications of this product please visit the Inogeni web site clicking HERE

Ideal for classrooms, with this 4 video sources selector (switcher) benefit from instant seamless switching and automatic connection to any app—without drivers.

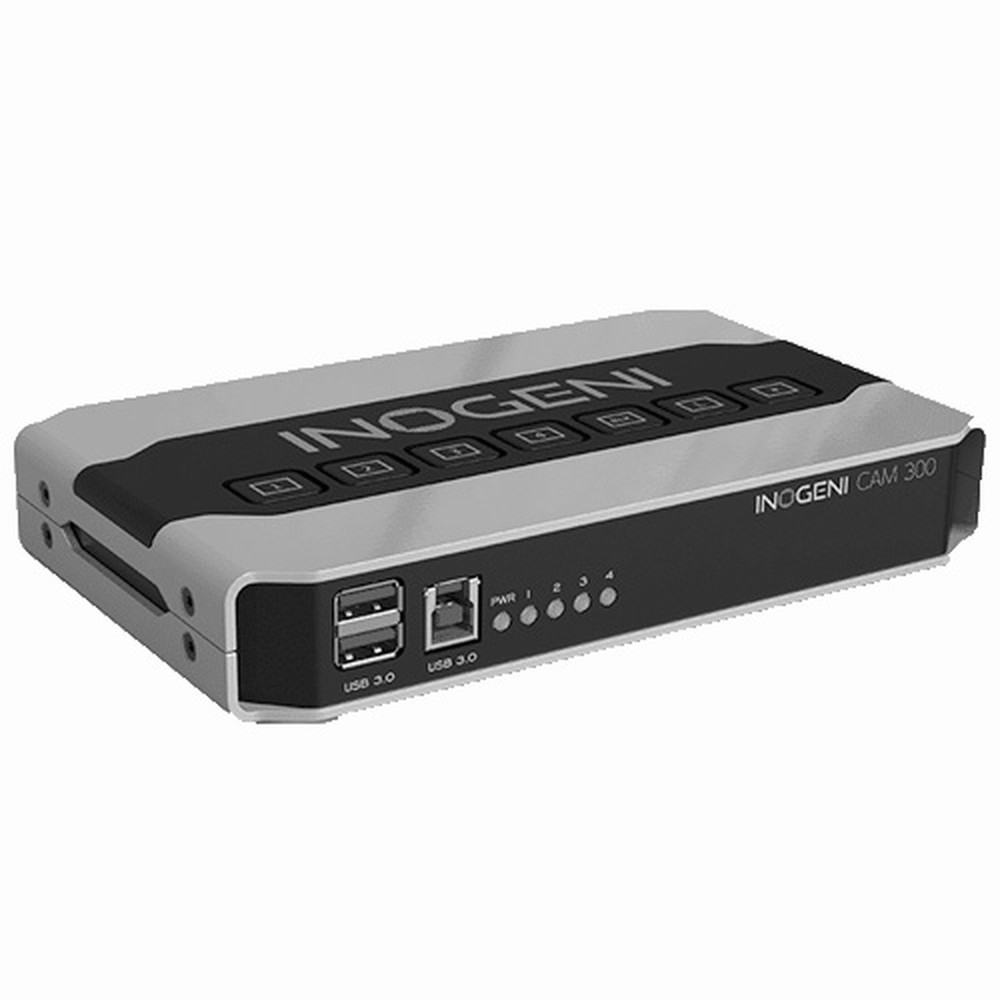

The CAM300 camera selector (switcher) can be used for a wide variety of applications. It engages a dynamic presentation for HyFlex classroom webinars or live streaming. Keep the flow of your presentation by switching cameras with an easy push button.

4 video cameras sources (2 USB and 2 HDMI) clean switcher into a single USB 3.0 interface
Engage a dynamic presentation and switch easily the camera with a push button
Change camera and video configuration without cutting the flow of your presentation
Ideal for remote education, collaborative meetings, webinars or live streaming
Compatible with the Q-SYS Core processors
See Q-SYS/INOGENI CAM300 application notes
Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
Output: Uncompressed video on USB 3.0, MJPEG on USB 2.0 and HDMI 1080p60
Audio I/O and mixer via the  INOGENI Control App
Controllable by LAN & RS-232
Cost-effective solution that is reliable and simple to install and connect (no driver required)
Compact and robust design with its aluminum enclosure
TAA-compliant

KEY FEATURES

4:1 Camera selector
(Smooth video switch)
4 inputs: 2x HDMI & 2x USB 2.0
2 outputs: HDMI 1080p60 & USB 3.0 output

Video inputs

#1 Connector & video resolutions
1 x USB camera 2.0
MJPEG or H264 (*)
Depends on the camera specifications

#2 Connector & video resolutions
1 x USB camera 2.0
MJPEG or H264 (*)
Depends on the camera specifications

#3 Connector & Video Resolutions
1x HDMI
1080p60, 1080p30, 720p60 and 480p60
(1080p60 supported for S/N greater than KC2111xxx and KCM111xxx)

#4 Connector & video resolutions
1x HDMI
1080p60, 1080p30, 720p60 and 480p60
1080p60 supported for S/N greater than KC2111xxx and KCM111xxx)

Notes for MJPEG and H264
* USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 3.0 or 2.0 cameras that support MJPEG or H264 CODECs.

Color space
HDMI : RGB, YCbCr 4:4:4 and 4:2:2

Video output
HDMI
1x HDMI up to 1080p60
(One mixed video stream)

USB
1x USB 3.0 uncompressed up to 1080p60
(One mixed video stream)

USB - Color Space ou CODEC
USB 3.0: YCbCr (YUY2) 4:2:2 8-bit.
USB 2.0: MJPEG

USB - Video scaler
Automatic hardware-based

USB - Color space conversion
Automatic hardware-based

USB - Sampling conversion
Automatic hardware-based

USB - Frame rate conversion
Automatic hardware-based

Audio
Digital audio I/O
HDMI embedded PCM
USB camera audio
USB 3.0 PCM stereo, audio follow input

Control options
Front buttons
RS-232
LAN
USB

IP interface
DHCP not supported.
Static IP address configuration through our Control App

USB Port
USB expansion port
Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

Compatibility
Barco ClickShare compatible
Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

Operating systems
NO driver installation necessary!

Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38)

Minimum host requirements
USB 2.0 port – We recommend USB 3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory

Motherboard & laptop
Compatible with all processors and chipsets. Intel, Renesas, ASMedia and Fresco Logic.

Supported cameras
Cameras with an HDMI, DVI or USB 2.0 output

Software Compatibility
UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
Compatible to: Teams, Zoom, Webex, Google Meet, etc.

Video switch speed

Less than 0.2 second for switching between USB inputs.
Less than 0.2 second for switching between HDMI inputs with same video resolution.
Less than 0.2 second for switching between USB input and “active” HDMI input and vice-versa.
Up to 2 seconds switching between HDMI inputs if video resolutions are different.

*Active HDMI input is the last selected HDMI input.

Physical details
Dimensions (W x L x H)
18.5 cm x 11.0 cm x 3.0 cm
7.25” x 4.25” x 1.25”

Power supply
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

Weight
469 g (1.03 lb)

Package content
1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)

Operating temperature
0° to 45° C
32° to 113° F

Storage temperature
-40° to 105° C
-40° to 221° F

Relative humidity
0% to 90% non-condensing

PRODUCT VIDEO

HOW IT WORKS

For full specifications of this product please visit the INOGENI web site clicking HERE

INOGENI’s 4KX-PLUS Ultra HD to USB 3.0 camera converter with an HDMI loop and external power is the most cost-effective and high-performance professional camera converter for your BYOM applications. It connects your HDMI cameras, video sources and CODECS to your laptop.

• Perfectly compatible with Cisco Webex BYOM applications
• Direct integration with Cisco room equipment (camera, audio and screen)
• Solves interoperability issues
• Optimizes your assets and avoids additional license fees for Cloud Video Interop (CVI) service and user management
• Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
• Compact and robust camera converter technology
• TAA-compliant

KEY FEATURES

The 4KX-PLUS Ultra HD to USB 3.0 camera converter with an HDMI loop and external power offers an array of features for a smooth and seamless BYOD or BYOM experience:

• HDMI capture to USB 3.0
• Compatible with USB 2.0 (high-quality MJPEG)
• HDMI loop output
• Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps
• HDMI audio support
• Analog audio I/O
• Digital Fluid technology: Internal frame buffers maximize frame rate
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion (UHD up-scaling not supported)
• Image controls: Brightness, contrast, saturation, and hue settings
• Supports multiple devices on the same PC

HOW IT WORKS

The 4KX-PLUS Ultra HD to USB 3.0 camera converter works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.

Requiring no drivers and compatible with Windows, macOS and Linux laptops, the converter resolves all interoperability issues.
