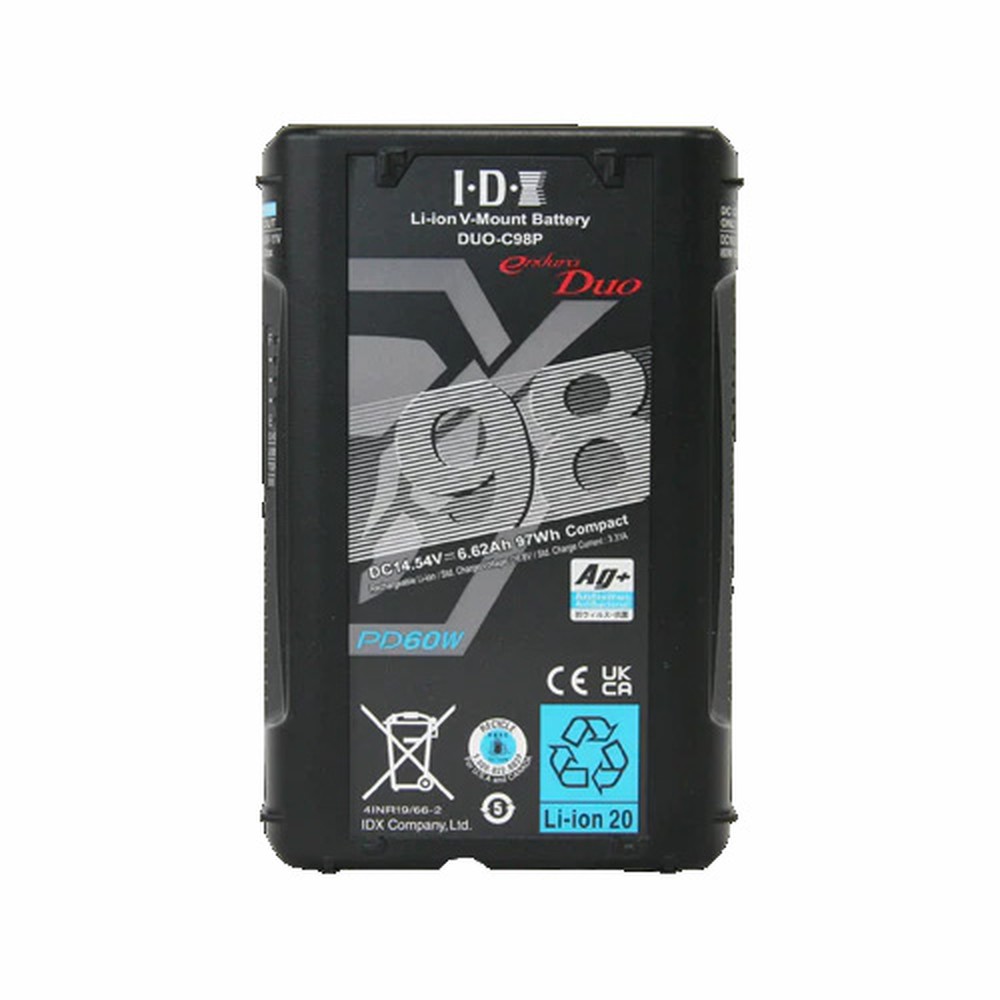

97Wh High-Load Li-Ion
V-Mount Battery w 2x D-Tap and USB-PD
by Idx
Ref # DUO-C98P
For full specifications of this model of products please visit the IDX site clicking HERE
PRODUCT DETAILS
The DUO-C98P is the successor of the popular DUO-C98 battery. At 97Wh, it is IATA friendly(<100Wh) and perfect for handheld gimbal and aerial setups.
The DUO-C98P comes equipped with two built-in D-Taps and now features a built-in USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.
KEY FEATURES
| Capacity: | 97Wh (14.54V/ 6.62Ah) |
| Max Output Voltage: | 16.8V DC |
| Nominal Voltage: | 14.54V DC |
| Max Discharge Current: | 10.5A‡ |
| D-Tap: | 80W each |
| USB-C PD: | DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W |
| End Voltage: | 11V |
| Battery Protection: | Over-charge, Over-discharge, Over-current, Thermal protection |
| Ambient Temperature: | To charge: 32°F ~ 104°F (50°F ~ 86°F recommended) To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended) To store: -4°F ~ 122°F (less than 1 month) |
| Dimensions: | 3.82(W) x 5.75(H) x 1.54(D) inches |
| Weight: | 1.41 lbs approx. |
|
‡ may vary depending on the operating temperature |
