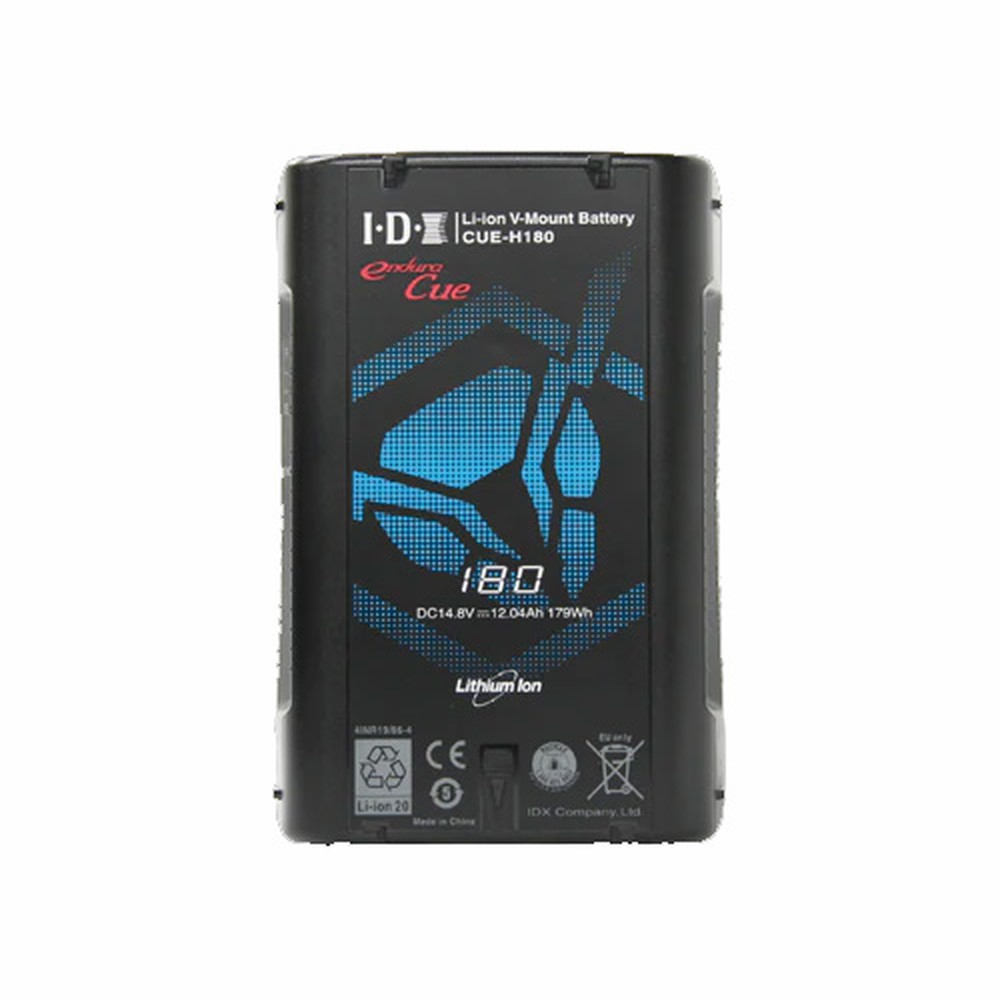

179Wh High-Load Li-Ion
V-Mount Battery w 1x D-Tap
by Idx
Ref # CUE-H180
For full specifications of this model of products please visit the IDX site clicking HERE
PRODUCT DETAILS
The CUE-H180 V-Mount battery answers to the power demands of digital cinematography and broadcast cameras where high current loads of 12A/155W are standard.
The CUE-H180 provides a robust 155Wh capacity with the ability to comfortably handle 12A/155W loads, as well as a single built-in D-Tap output capable of taking a 80W load for powering ancillary accessories.
*Not compatible with D-Tap charging
KEY FEATURES
| Capacity: | 179Wh (14.8V/ 12.04Ah) |
| Max Output Voltage: | 16.8V DC |
| Nominal Voltage: | 14.8V DC |
| Max Discharge Current: | 12A‡ |
| D-Tap: | 80W each |
| End Voltage: | 11.2V |
| Battery Protection: | Over charge, Over discharge, Over current |
| Ambient Temperature: | To charge: 32°F ~ 104°F (50°F ~ 86°F recommended) To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended) To store: -4°F ~ 113°F (less than 1 month) |
| Dimensions: | 3.82(W) x 5.75(H) x 2.32(D) inches |
| Weight: | 2.31 lbs approx. |
| ‡ may vary depending on the operating temperature |
